Overview

OCSR models accurately recognize molecular structures in clean, digitally rendered images but often perform poorly on hand-drawn depictions. This performance gap arises largely from the scarcity of hand-drawn training data—DECIMER [3] contains only 5,088 images—and the inability of conventional depiction tools such as RDKit and RanDepict to adequately reproduce the visual characteristics of real hand-drawn molecules.

OCSAug addresses this limitation through a diffusion-model-based augmentation pipeline that generates realistic hand-drawn variations while preserving the underlying molecular structure. Because each augmented image retains the original molecule, its SMILES label can be transferred automatically, eliminating the need for manual annotation. The journal article [1] extends work first presented at ASK 2024 [8].

Contributions

• OCSAug introduces the first diffusion-based augmentation method designed specifically for hand-drawn OCSR.
• Its stripe-masking strategy increases visual diversity while preserving molecular topology.
• The original SMILES labels are transferred automatically to the augmented images, eliminating the need for manual annotation.
• The method is evaluated using four OCSR models and an independently collected real-world hand-drawn dataset.

Method

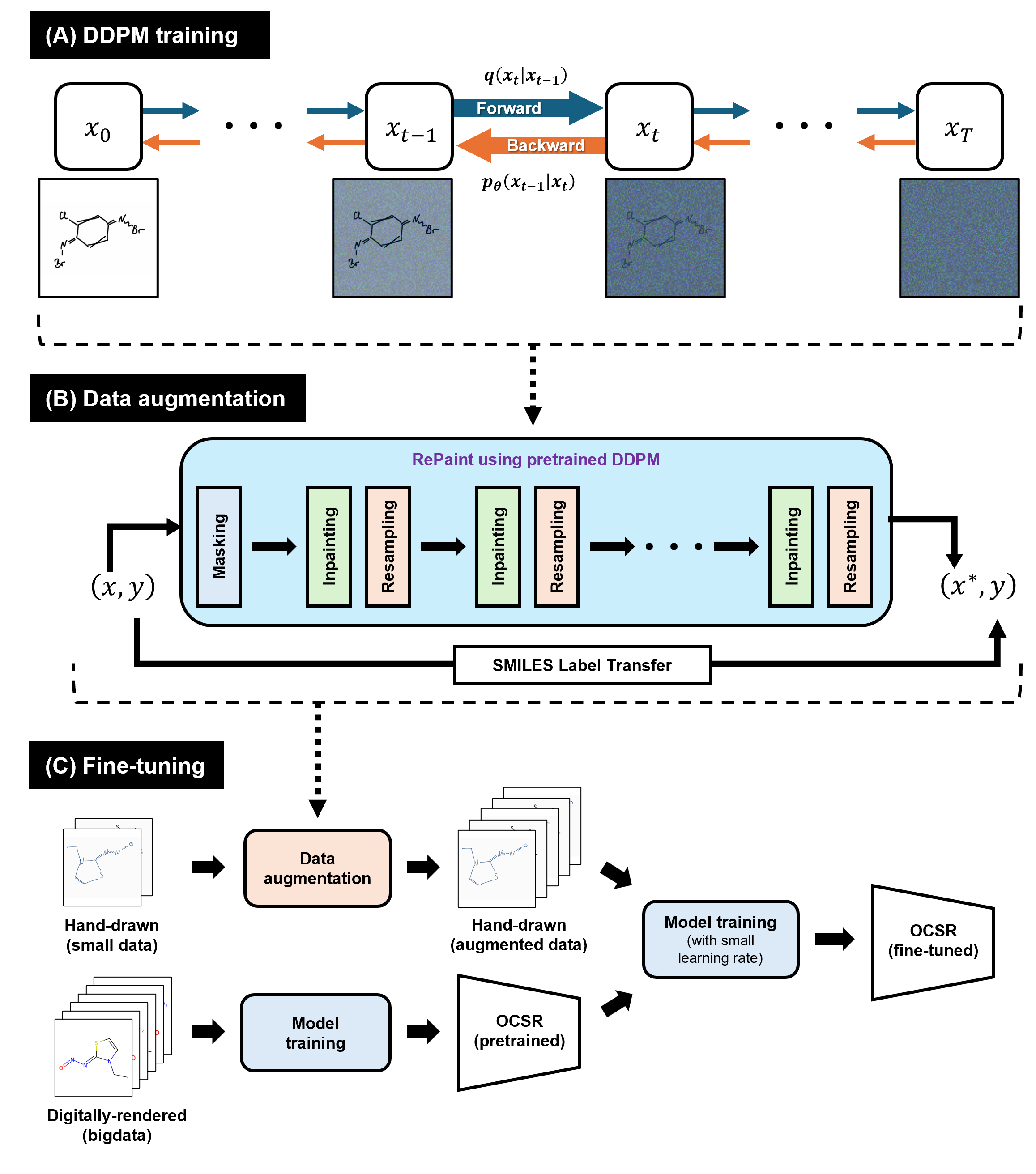

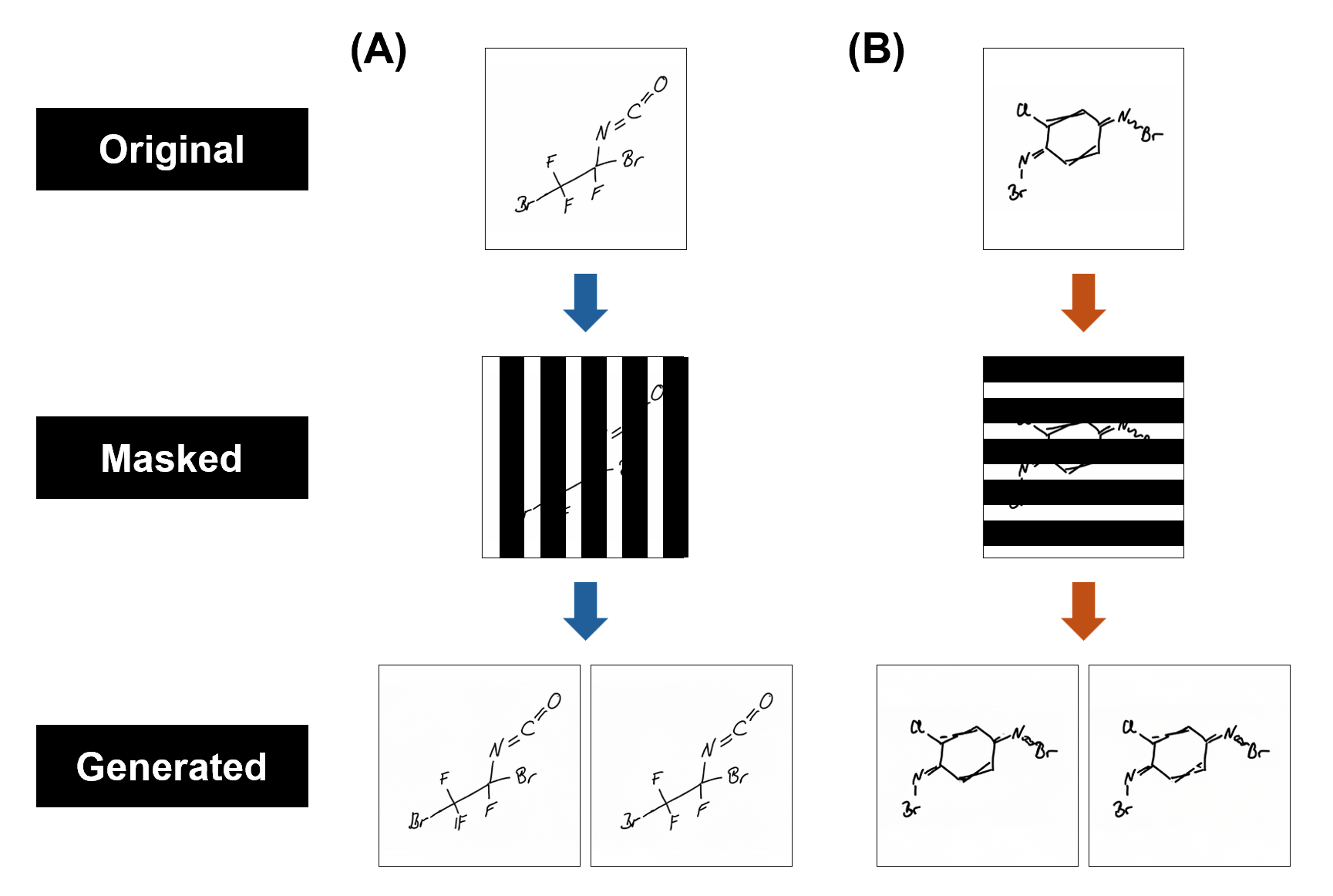

A DDPM is first trained to capture the visual characteristics of hand-drawn molecular images. Selected image regions are then masked and regenerated using RePaint [2] and the trained DDPM. Vertical stripe masks target atom-symbol regions, whereas horizontal stripe masks target bond regions, introducing visual variation while preserving the molecular structure. Because the molecular structure remains unchanged, the original SMILES label can be assigned directly to each augmented image. The OCSR model is subsequently fine-tuned on the augmented dataset.

A stripe width of 4 pixels provided the best trade-off between visual diversity and structural fidelity.

Results

The method was evaluated on the drug-like subset of DECIMER [3], comprising 3,194 images.

Generation quality (FID, lower is better):

Recognition improvement (Tanimoto-based improvement ratio):

OCSAug consistently improved recognition performance across all four OCSR models: MolScribe [5], I2S [4], MolNexTR [6], and MPOCSR [7].

Real-world generalization: On an independently collected set of 463 hand-drawn images, exact-match accuracy improved from 36.6% to 37.4%, indicating that the performance gains extend beyond the benchmark dataset.

For further details, please refer to the full paper.

References

1. Kim, J. H., & Choi, J. (2025). OCSAug: diffusion-based optical chemical structure data augmentation for improved hand-drawn chemical structure image recognition. The Journal of Supercomputing, 81, Article 926.
2. Lugmayr, A., Danelljan, M., Romero, A., Yu, F., Timofte, R., & Van Gool, L. (2022). RePaint: Inpainting using Denoising Diffusion Probabilistic Models. CVPR 2022.
3. Rajan, K., Brinkhaus, H. O., Zielesny, A., & Steinbeck, C. (2022). DECIMER — hand-drawn molecule images dataset. Journal of Cheminformatics, 14, 36.
4. Rajan, K., Zielesny, A., & Steinbeck, C. (2021). DECIMER 1.0: deep learning for chemical image recognition using transformers (I2S). Journal of Cheminformatics, 13, 61.
5. Qian, Y., Guo, J., Tu, Z., Li, Z., Coley, C. W., & Barzilay, R. (2023). MolScribe: Robust Molecular Structure Recognition with Image-to-Graph Generation. Journal of Chemical Information and Modeling.
6. Chen, Y., et al. (2024). MolNexTR: a generalized deep learning model for molecular image recognition. Journal of Cheminformatics, 16, 141.
7. Lin, F., & Li, J. (2024). MPOCSR: optical chemical structure recognition based on multi-path Vision Transformer. Complex & Intelligent Systems, 10(6), 7553–7563.
8. Kim, J. H., Song, T. W., & Choi, J. (2024). A Study on DDPM-based Molecular Generation and Semi-Supervised Learning for Improving the Performance of Optical Chemical Structure Recognition. Annual Symposium of KIPS (ASK).
